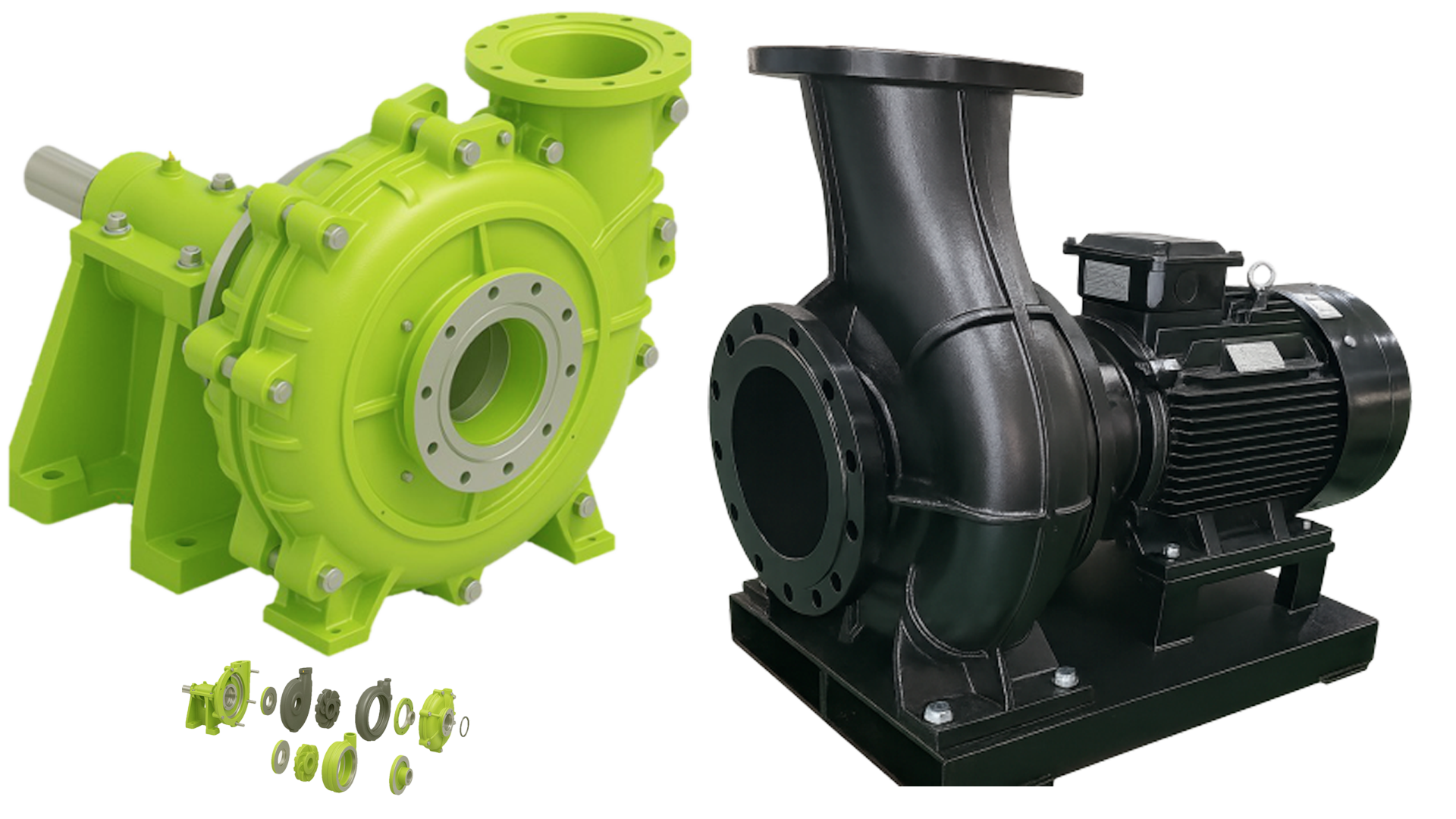

OPERATIONAL LIMITS

Capacity up to 2000 m³/h
Head up to 60 m
Max Pressure 375 psi (26 bar)
Temp up to 70 °C
Solid content 70%

TYPICAL APPLICATIONS

• Mill discharge
• Tailings
• Hydrocyclone feed
• Mineral processing
• Flotation
• Brine ponds (Salares)

MATERIALS

• Metal (A05, A09)
• Special metals & materials
• Rubber

OPERATIONAL LIMITS

Capacity up to 7,000 gpm (1,590 m³/h)
Head up to 650 ft (198 m)
Max Pressure 375 psi (26 bar)
Temp up to 700 °F (371 °C)

CONSTRUCTION MATERIALS

Stock materials:

• DI/SST
• DI/Duplex
• SST/SST
• Duplex/Duplex
• Alloy 20
• Hastelloy B & C

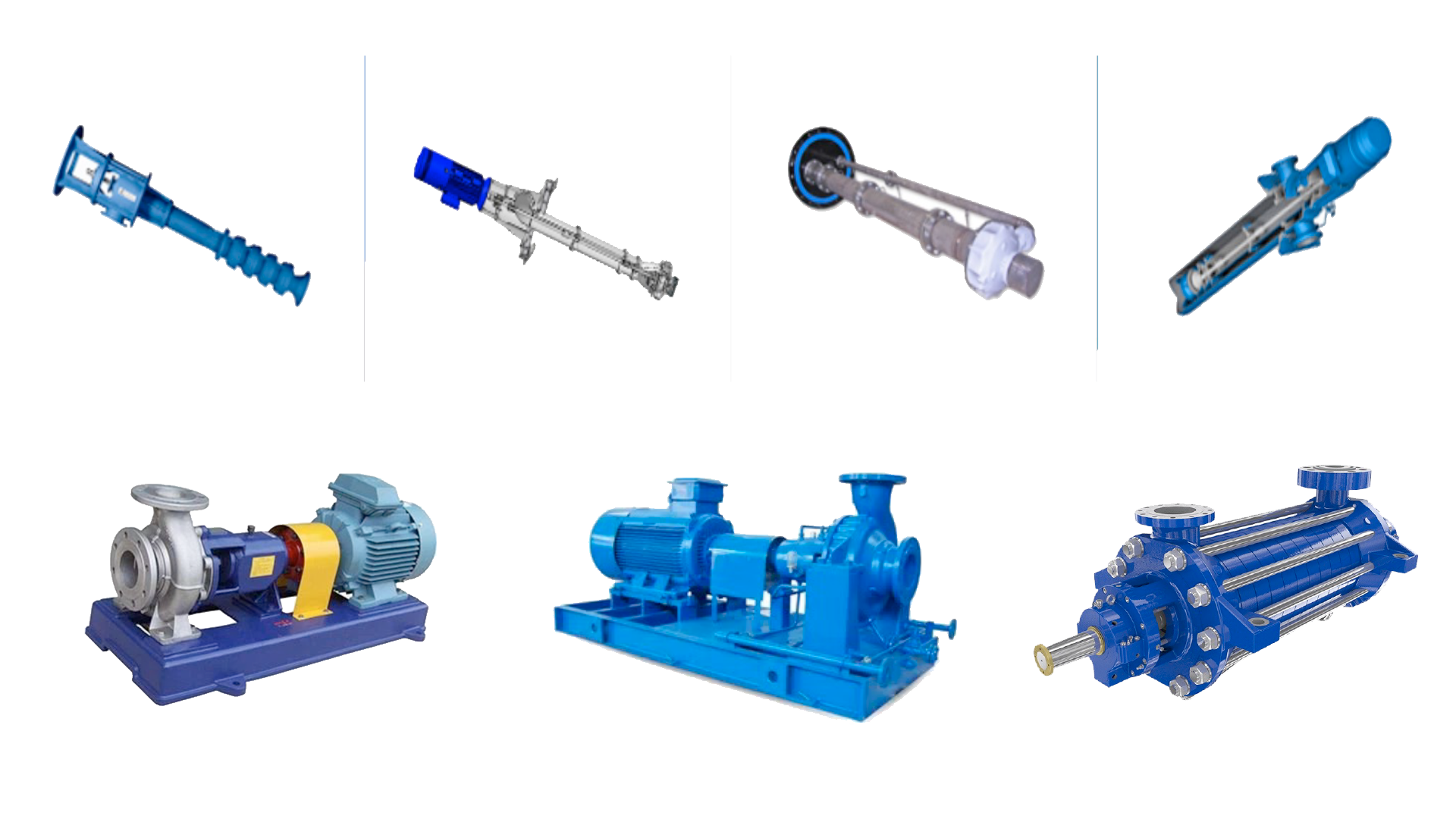

API STANDARD PUMPS

Verticals: VS1; VS2; VS4; VS6

Horizontals: BB1; BB3; BB4; OH1; OH2

CONSTRUCTION MATERIALS

Stock materials:

• DI/SST
• DI/Duplex
• SST/SST
• Duplex/Duplex
• Alloy 20
• Hastelloy B & C

OPERATIONAL LIMITS

Size 2” to 16”
Head up to 100 m
Max pressure 150 psi
Flow up to 2000 m³/h

TYPICAL APPLICATIONS

• Pulp concentrate & tailings
• Mineral concentrate
• Energy, Pulp & paper
• Sumps, Water with heavy solids

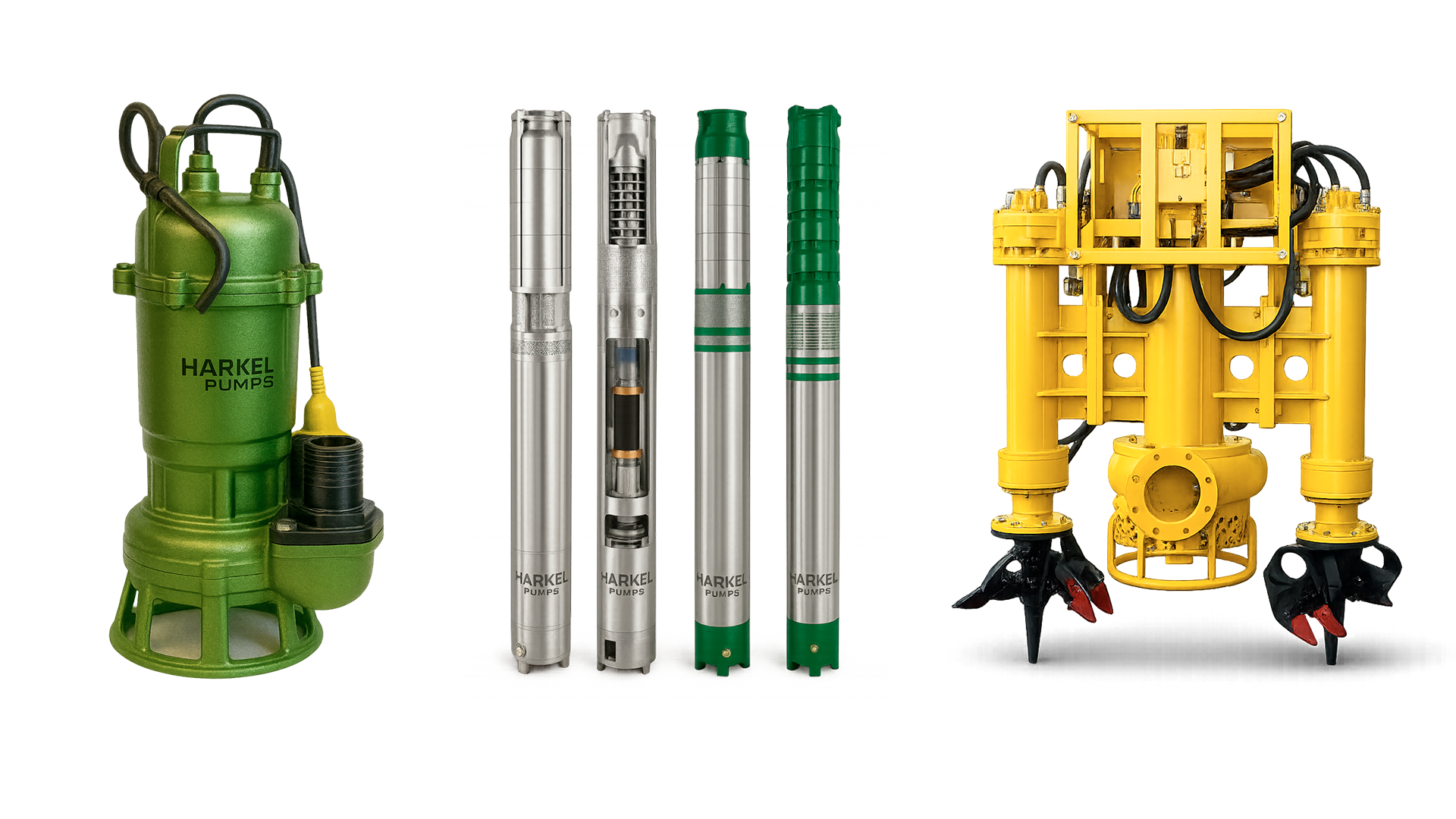

DEEP WELL & DREDGING

Deep Well: Potable water, Tanks, Mining plants, Cooling systems.

Dredging: Water/Solid mixtures, Abrasive sludge, Sediment removal.
